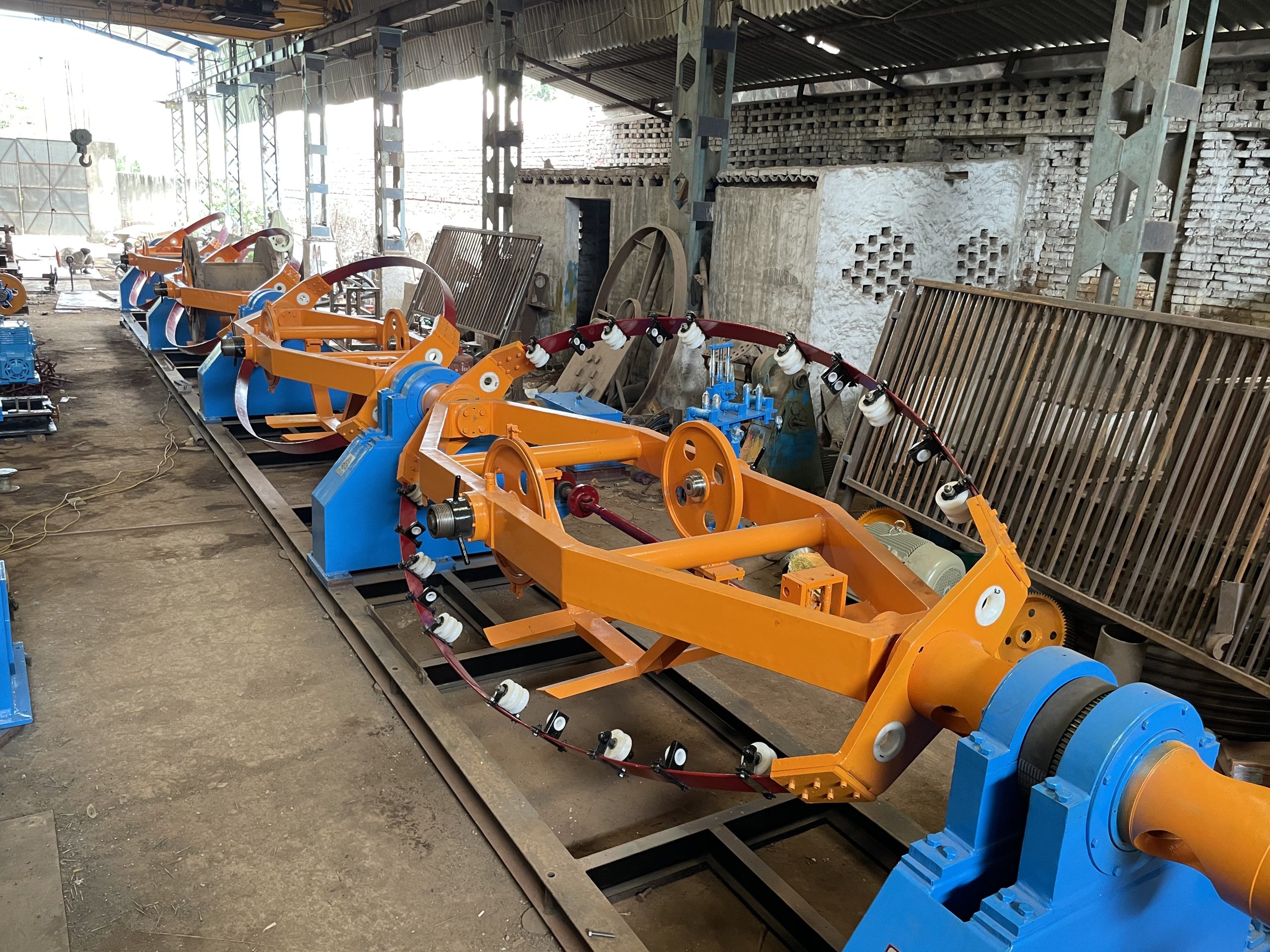

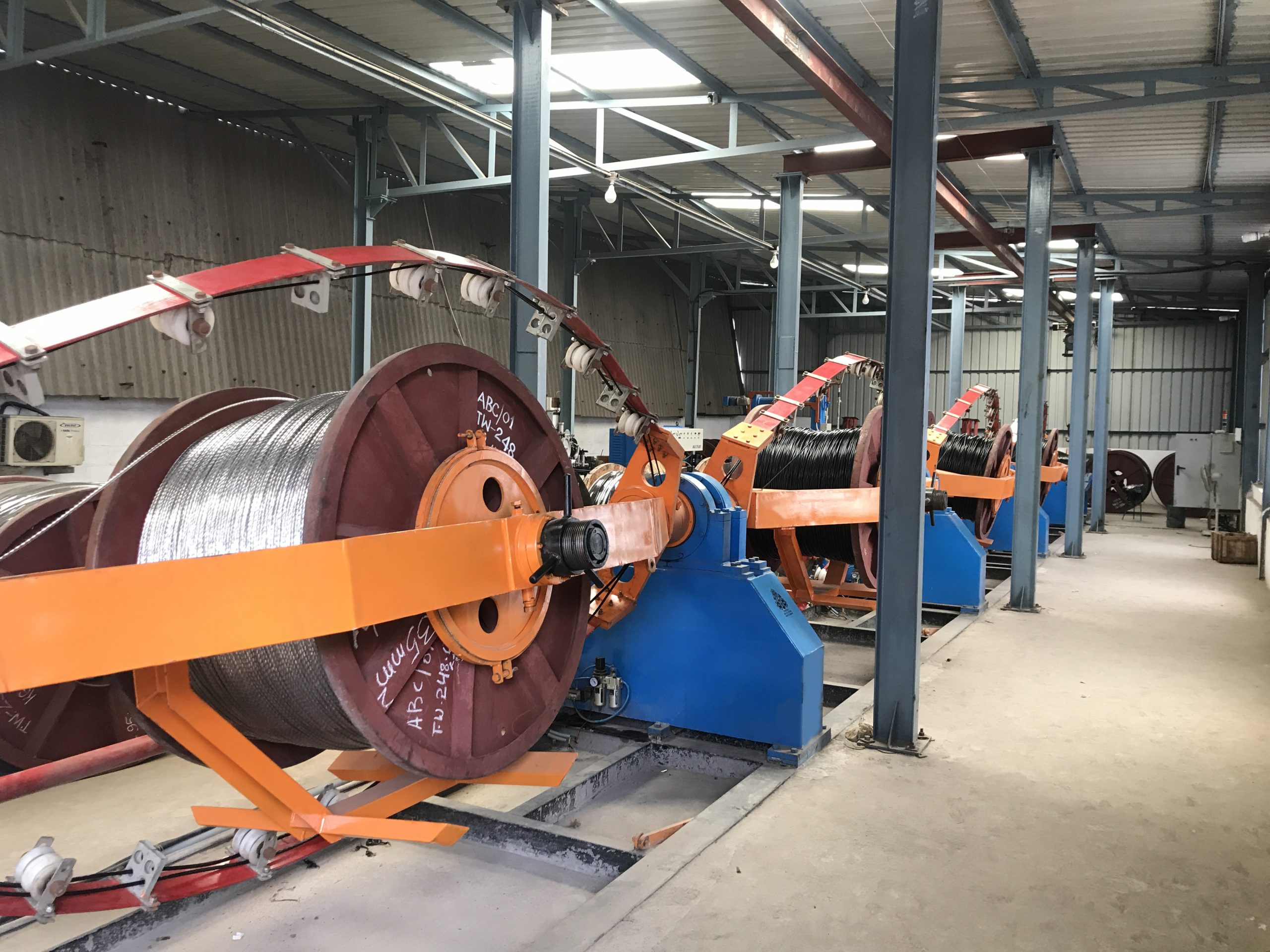

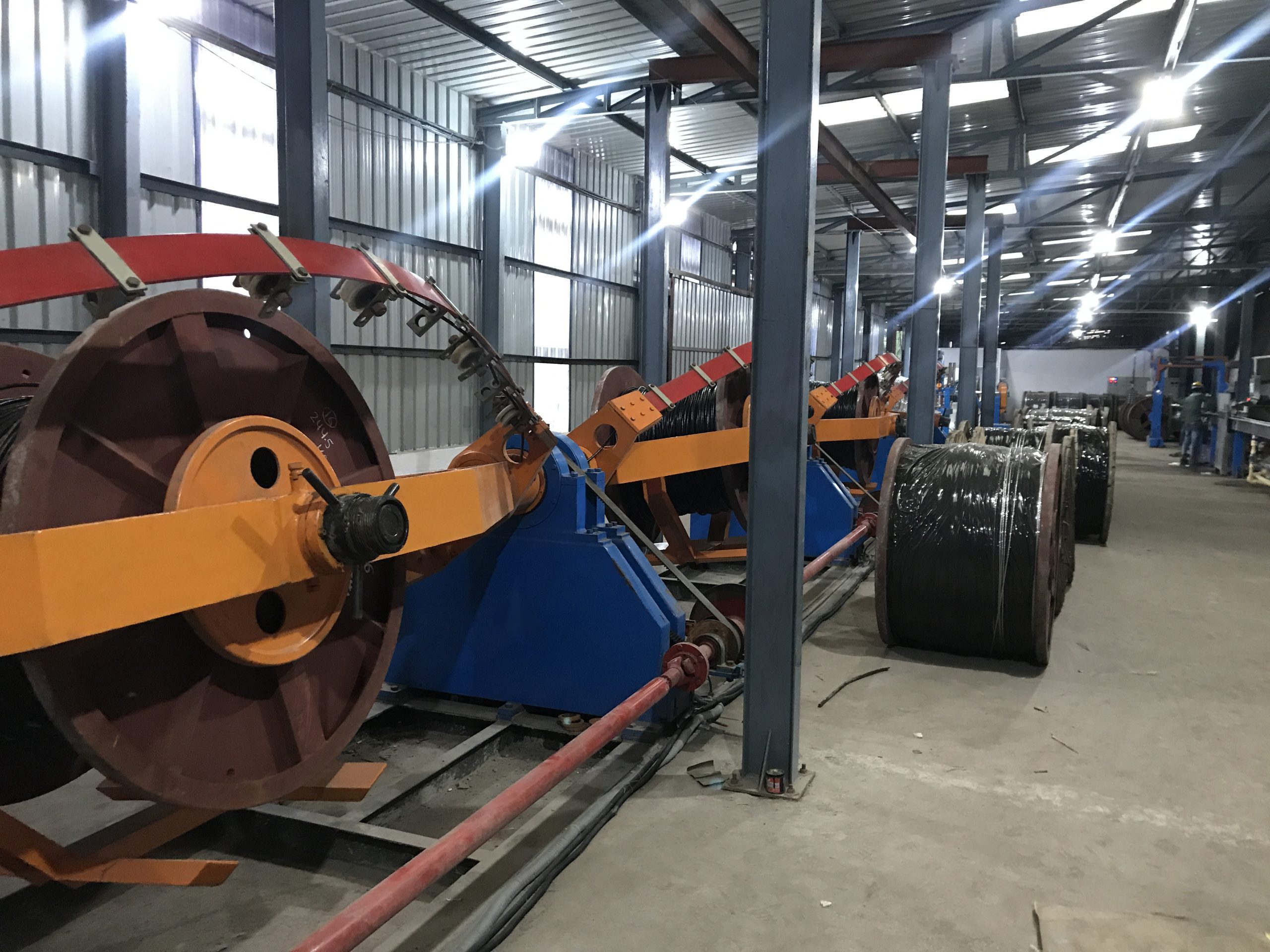

- The machine is suitable for stranding 1+6 compact, bare Al/Cu wire, ACSR and Aluminium alloy wire.
- The machine is suitable for stranding 1+12 (19 wire upto 150 sq mm) conductor
- The laying model is suitable for laying 2,3,4 core PVC / XLPE Insulated cores and Bare messenger for Aerial Bunched Cables.
- Aerodynamically designed special high tensile steel bows for wire guide arrangement and dynamically balanced rotors.
- Machine drive by mechanical synchronization or by individual AC motor drive for machine components with timing belt drive for each rotor and pneumatic disc brakes.
Technical Specification
| Model | Rotor Speed | Wire / Core Dia | Size |
|---|---|---|---|
| KKIC/1+6/630/SSM | 900 RPM | 1.5 - 5.0 mm | 16 - 50 Sq mm |
| KKIC/1+4/1000/SLM | 500 RPM | 2.50 - 10 mm | 150 Sq mm |
| KKIC/1+4/1250/SLM | 300 RPM | 3.00 - 12.00 mm | 200 Sq mm |
| KKIC/1+4/1600/SLM | 200 RPM | 5.00 - 18.00 mm | 300 Sq mm |
| KKIC/1+12/SSM | 300 RPM | 1.50 - 5.00 mm | 150 Sq mm |
